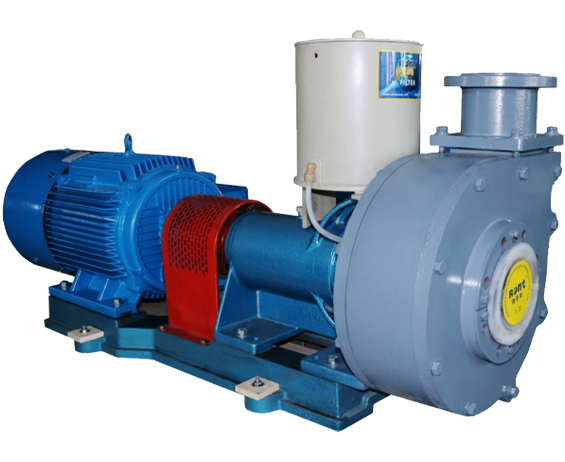

RLTH - New Generation Turbocharged Chemical Pump
Newly upgraded second generation turbocharged centrifugal pump:
Efficient, energy-saving, idling-resistant design
Patent No:ZL201921346727.X
Applicable to: non-ferrous metal smelting, sulfuric acid industry, chlor-alkali industry, wastewater treatment industry, steel industry, coal industry, etc.
• Corrosion resistance, wear resistance, idling resistance, high temperature resistance, and high pressure resistance are the five advantages of resistance. Patented new idling-resistant sealing structure reduces maintenance costs.
• Original patented sealing design: The sealing system can handle media with particles, prolong service life, and facilitate installation.
• It has the advantage of being resistant to idling and not being damaged.
Turbocharging Technology
Same horsepower, efficiency +20%
Same efficiency, energy saving +20%
Self-cooling Shaft Seal Design
Dry operation for 20 hours without water
The shaft seal is not damaged
Five Resistant Technology
Special material series pumps, corrosion-resistant, abrasion-resistant,
resistant to idling, high temperature, high pressure five-resistant advantages.
Turbine self-priming pump, super self-priming power
| Model | Caliber（mm） （In-out） | Power | 50HZ | ||||
| Number of phases（φ） | Power（KW） | Horsepower（HP） | Curve No | Rate of flow（m³/h） | Lift（m） | ||
| RLT-125DM-30 | 150*125 | 3 | 22 | 30 | a | 256 163 75 | 10 25 31 |
| RLT-125DM-40 | 150*125 | 3 | 30 | 40 | b | 305 206 69 | 10 25 32 |
| RLT-125DM-50 | 150*125 | 3 | 37 | 50 | c | 350 260 98 | 10 25 32 |
| RLT-125DM-60 | 150*125 | 3 | 45 | 60 | d | 418 306 135 | 10 25 35 |
| RLT-125DM-75 | 150*125 | 3 | 55 | 75 | e | 463 352 156 | 10 25 40 |
| RLT-150DM-75 | 200*150 | 3 | 55 | 75 | f | 498 373 208 | 10 25 35 |
| RLT-125DM-100 | 150*125 | 3 | 75 | 100 | g | 558 416 169 | 10 30 50 |
| RLT-150DM-100 | 200*150 | 3 | 75 | 100 | h | 628 461 231 | 10 30 40 |
| RLT-150DM-120 | 200*150 | 3 | 90 | 120 | i | 668 485 238 | 10 30 50 |
